High precision throttling for hydraulic cylinders and hydraulic motors. Available in in-line panel mounting and sub-plate configurations rated up to 350 BAR.
Falcon high-pressure speed control valves [FDRV] with integrated reverse flow check valve allow fine, repeatable flow adjustment in the controlled direction while permitting unrestricted free flow in the reverse direction.
| Model Code | Thread Port Size | Rated Flow Capacity | Operating Pressure | Action |
|---|---|---|---|---|
| FDRV-08 | 1/4" BSP | 12 LPM | 350 BAR | Inquire |
| FDRV-10 | 3/8" BSP | 25 LPM | 350 BAR | Inquire |
| FDRV-12 | 1/2" BSP | 40 LPM | 350 BAR | Inquire |
| FDRV-16 | 3/4" BSP | 75 LPM | 350 BAR | Inquire |
| FDRV-20 | 1" BSP | 120 LPM | 350 BAR | Inquire |
| FDRV-25 | 1-1/4" BSP | 150 LPM | 350 BAR | Inquire |
| FDRV-30 | 1-1/2" BSP | 200 LPM | 350 BAR | Inquire |
| FDRV-40 | 2" BSP | 300 LPM | 350 BAR | Inquire |

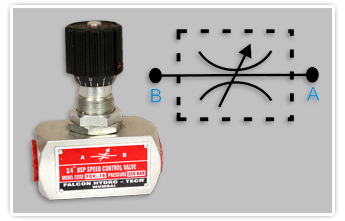

Falcon high-pressure speed control valves [FDV] have a specially designed micro-throttle mechanism to enable fine adjustment of shut-off flow. The flow control and shut-off function works bi-directionally.
| Model Code | Thread Port Size | Rated Flow Capacity | Operating Pressure | Action |
|---|---|---|---|---|
| FDV-08 | 1/4" BSP | 12 LPM | 350 BAR | Inquire |
| FDV-10 | 3/8" BSP | 25 LPM | 350 BAR | Inquire |
| FDV-12 | 1/2" BSP | 40 LPM | 350 BAR | Inquire |
| FDV-16 | 3/4" BSP | 75 LPM | 350 BAR | Inquire |
| FDV-20 | 1" BSP | 120 LPM | 350 BAR | Inquire |
| FDV-25 | 1-1/4" BSP | 150 LPM | 350 BAR | Inquire |
| FDV-30 | 1-1/2" BSP | 200 LPM | 350 BAR | Inquire |
| FDV-40 | 2" BSP | 300 LPM | 350 BAR | Inquire |

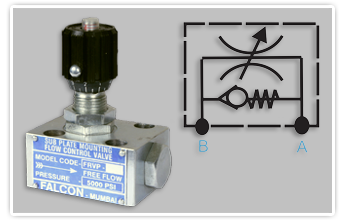

Compactly built base/manifold mounting valves engineered for hydraulic power units and control blocks. Available with reverse check (FDRVP) or without check (FDVP).
| Model (With Check) | Model (Without Check) | Rated Flow Capacity | Max Pressure | Action |
|---|---|---|---|---|
| FDRVP-06 | FDVP-06 | 6 LPM | 350 BAR | Inquire |
| FDRVP-08 | FDVP-08 | 12 LPM | 350 BAR | Inquire |
| FDRVP-10 | FDVP-10 | 25 LPM | 350 BAR | Inquire |
| FDRVP-12 | FDVP-12 | 45 LPM | 350 BAR | Inquire |
| FDRVP-16 | FDVP-16 | 75 LPM | 350 BAR | Inquire |
| FDRVP-20 | FDVP-20 | 120 LPM | 350 BAR | Inquire |
| FDRVP-25 | FDVP-25 | 150 LPM | 350 BAR | Inquire |
| FDRVP-30 | FDVP-30 | 200 LPM | 350 BAR | Inquire |
| FDRVP-40 | FDVP-40 | 300 LPM | 350 BAR | Inquire |
